Laser spider vein removal machine
Theory of 980nm Diode laser vascular vein removal
1. 980nm laser is the optimum absorption spectrum of Porphyrin vascular cells. Vascular cells absorb the high-energy laser of 980nm wavelength, solidification occurs, and finally dissipated.
2. To overcome the traditional laser treatment redness large area of burning the skin, professional design hand-piece, enabling the 980nm laser beam is focused onto a 0.2-0.5mm diameter range, in order to enable more focused energy to reach the target tissue, while avoiding burn the surrounding skin tissue.
3. Laser can stimulate the dermal collagen growth while vascular treatment, increase epidermal thickness and density, so that the small blood vessels are no longer exposed, at the same time, the skin's elasticity and resistance is also significantly enhanced.
4.The Laser system based on the thermal action of the laser. The transcutaneous irradiation (with a penetration of 1 to 2 mm in the tissue) causes tissue selective absorption by hemeglobin (hemoglobin is the main target of the laser).
Application of 980nm Diode laser vascular vein removal
1 EVLT (Endovenous Veins Laser Treatment)
2 Vascular lesion therapy
3 Spider Veins/face veins
4 The superficial vessels, from 0.2 to 2 mm of diameter.
Spider veins,Telangectasias,Rosacea
| Beam Transmission |
Biquartz optical fiber transmission |
| Laser Type |
Pulse , CW |
| Wavelength |
980nm |
| Power |
30W |
| Cooling system |
Strong air cooling |
| Pulse frequency |
1-5Hz |
| Pulse width |
5-180s (stepping 1s) |
| Pilot Beam |
Red Diode Laser of 635nm, Power<5mW |
| LCD screen |
8.0 inch |
| Power requirement |
AC120V±22V,60HZ±1HZ/AC230V±22V, 50HZ±1HZ |
|
|

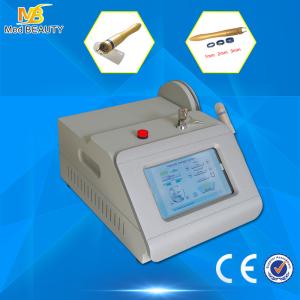

980 diode vascular laser machine spider vein removal diode laser 980nm Images
|
